Product Specifications

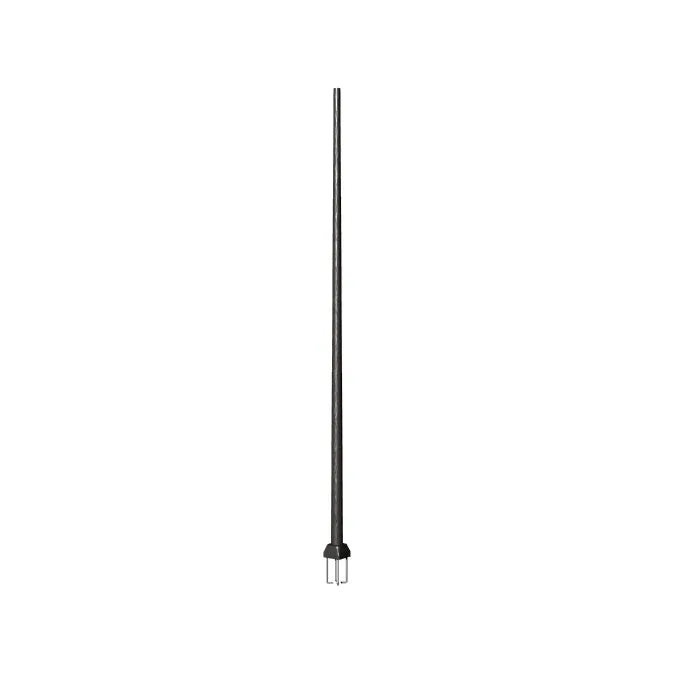

- Pole Shaft - Manufactured on computer-controlled equipment to customer specifications using filament wound technology. Strict control of glass, fiber and resin ensures a consistent product. Less electrically conductive than steel, aluminum or wood.
- Pole Top - Poles can be provided with tenon top construction or capped/drilled to customer specifications. Tenons on all poles are made of high-strength corrosion resistant aluminum.

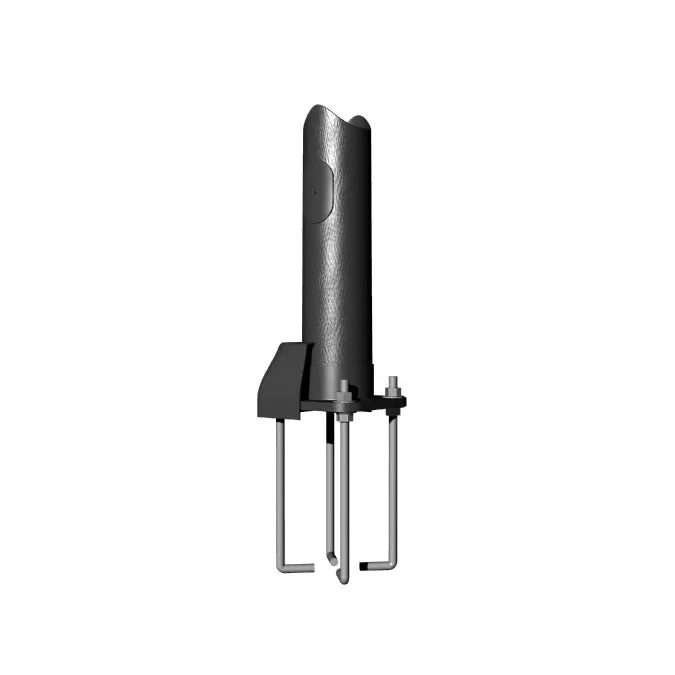

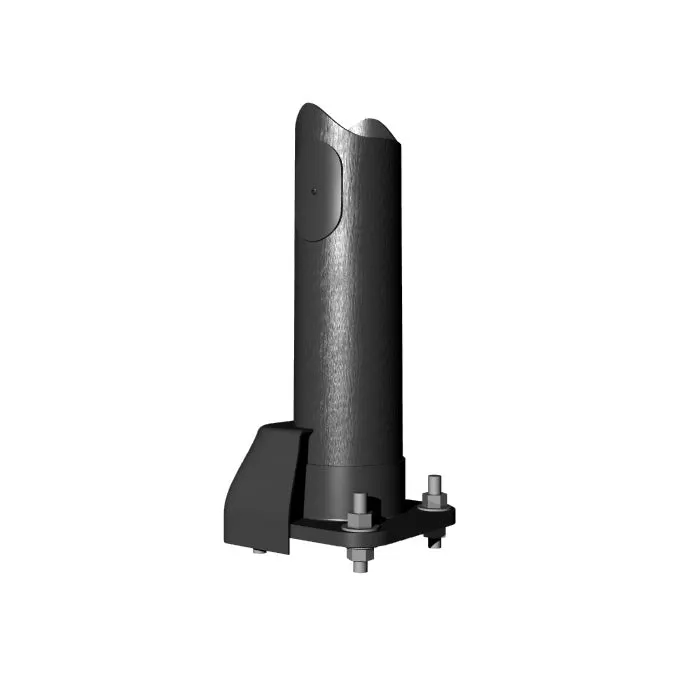

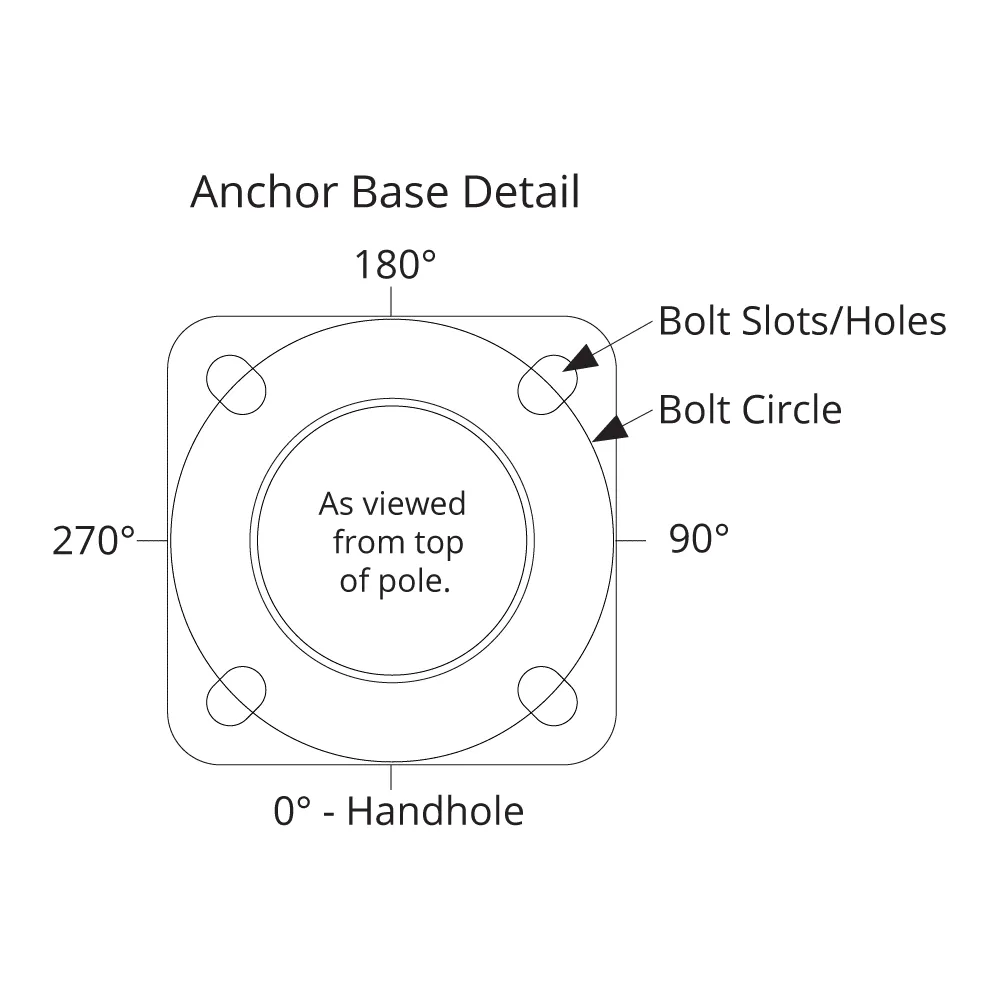

- Anchor Base / Cover - Anchor bases on poles are made of high-strength corrosion resistant aluminum. The anchor base is primed, painted, and factory bonded to the pole. Standard base cover is included.
- Anchor Bolts - Carbon steel conforming to AASHTO M314 Grade - 55 or ASTM F1554 Grade - 55. Bolts are "L" shaped and are galvanized a minimum of 12" on the threaded end. Each pole includes four bolts each with two nuts and two flat washers.
- Hand Hole - 2.5"x 5" hand hole is provided at the base end of the pole assembly. Each hand hole includes a cover and the cover attachment hardware.
- Finish - Rust-proof and corrosion-resistant for low lifetime maintenance. We finish our smooth and natural poles with a special finishing resin applied at 12 - 15 mils thick which provides a superior finish to the normal 1.5 mil thick paint. Resin is pigmented and fortified with ultraviolet inhibitors to produce a long-lasting, reliable product.
- Engineering & Compliance - Poles are constructed to comply with specifications of ANSI, AASHTO and ASTM standards.
