- 【FUNCTION】Ram 3500 turbo actuator can significantly increase the power and torque of the engine without increasing the engine displacement, increase the speed of the turbine, which can generate a larger intake boost pressure, increase the air intake, and improve the low-speed performance of the engine to keep your vehicle in tip-top condition at all times.
- 【INSTALLATION NOTE】After the IP is successful, make sure the turbine gear is at the left limt position (maxinum flow position) and assemble the actuator. Otherwise, it may lead to calibration failure.Please be sure to watch the calibration video before installing and calibrating.

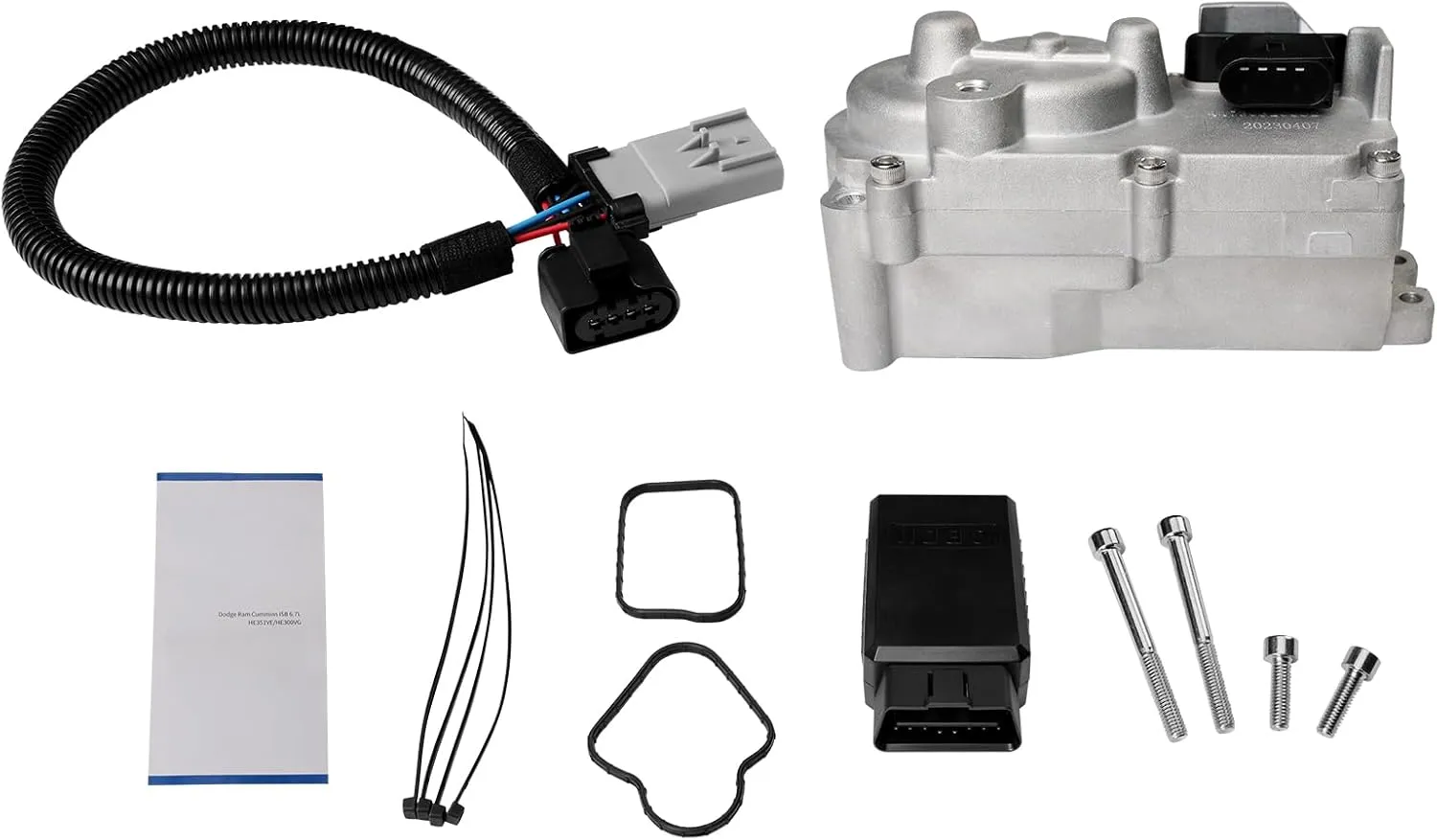

- 【Compatible With】Turbo actuator calibrate kit compatible with 2013-2018 Dodge Ram 2500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 3500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 4500 ISB 6.7L Diesel, 2013-2018 Dodge Ram 5500 ISB 6.7L Diesel. And including 1 turbo actuator,1 turbine calibration module, 1 Adapter Harness, 2 gasket,4 Screw,4 tie and instructions with installtion video.
- 【Replaces OEM】68481772AA 5601240NX 5601240 68481772AA 5494878RX 5452689 68445522AA 4034090 4034315 6382096RX 5494878H 4034309RX 4034168NX 4034309H 68232771AA 68244609AA 68307025AA 32704600HX 5459710RX 68210648AA 68212738AA 68245792AA 68253983AA 68295438AA 68297874AA 68321377AA
- 【12-MONTH WARRANTY】 If for any reason at all, you are not fully satisfied with the Ram 5500 turbocharger actuator , simply contact us through amazon message at any time. We will provide comprehensive quality assurance for our product.
Why you change this Turbocharger Turbo Actuator?
-Keeping your vehicle in tip-top condition at all times
-High reliability and durablity
-providing long service time
-Easy to install
-12 month warranty
Calibration Step:
Condition 1: Actuator had been removed from turbo: press IP Key - Assemble the Actuator with turbo and then - press IC Key
Condition 2: Actuator had been calibrated and assembled with turbo: press IC Key
Warning 1: Any time when Reset key is pressed, make sure Actuator had been removed from turbo, and then IP->IC
Warning 2: When IP success(digital tube display IP-S), make sure turbo gear is in the left limitation location and then assemble actuator. If not, calibration cannot success.
Operating voltage: 8-28V ((Usually 12V or 24V)
Operating temperature: -40~125°C
Fits:
2013-2018 Dodge Ram 2500 ISB 6.7L Diesel
2013-2018 Dodge Ram 3500 ISB 6.7L Diesel
2013-2018 Dodge Ram 4500 ISB 6.7L Diesel
2013-2018 Dodge Ram 5500 ISB 6.7L Diesel
Replace#
68481772AA 5601240NX 5601240 68481772AA 5494878RX 5452689 68445522AA 4034090 4034315 6382096RX 5494878H 4034309RX
4034168NX 4034309H 68232771AA 68244609AA 68307025AA 32704600HX 5459710RX 68210648AA 68212738AA 68245792AA 68253983AA 68295438AA 68297874AA 68321377AA
