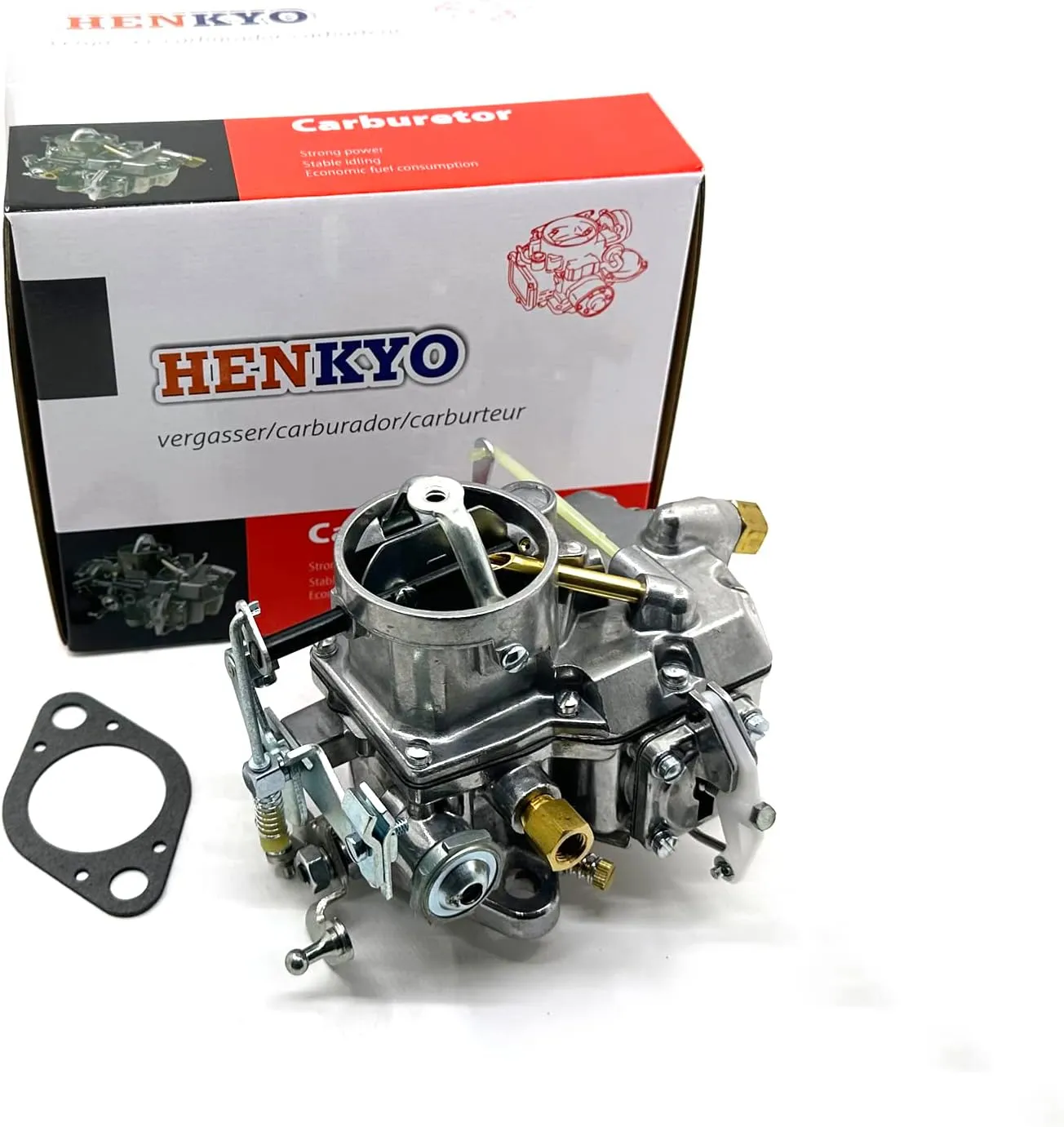

- Passenger side installation choke cable.bolt spacing 68mm.The new carburetor has gone through many strict test procedures. We have tested the leakage, idle speed and other test items to ensure that the carburetor at the factory is suitable for fully qualified.The initial installation of this carburetor requires the use of carburetor cleaner to spray clean the fuel inlet position to assist in needle valve lubrication
- When installing for the first time, if you find a leak in the position of the plastic push rod of the carburetor, don't worry.“tapped the top of the housing above float lightly and the needle valve seated properly”
- If you are using fuel containing 5-10% ethanol and the acceleration is weak after installation, please consider expanding the main jet of the carburetor by 0.1mm. Please rest assured that disassembling the carburetor will not affect its after-sales service. The disassembled carburetor will enjoy the same after-sales service as the new one, including returns, exchanges, and so on.
- Mustang straight-6 engine 200 cu in (3.3 L).Truck F100 straight-6 engine 262 cu in (4.3 L),Truck F100 straight-6 engine 223 cu in (3.7 L)
- When installing the carburetor, only adjust the air mixing screw on the base. If the idle speed needs to be adjusted, adjust the idle screw
A long history of carburetor and filter manufacturing, retro technology, the pursuit of quality assurance.Passenger side installation cable
