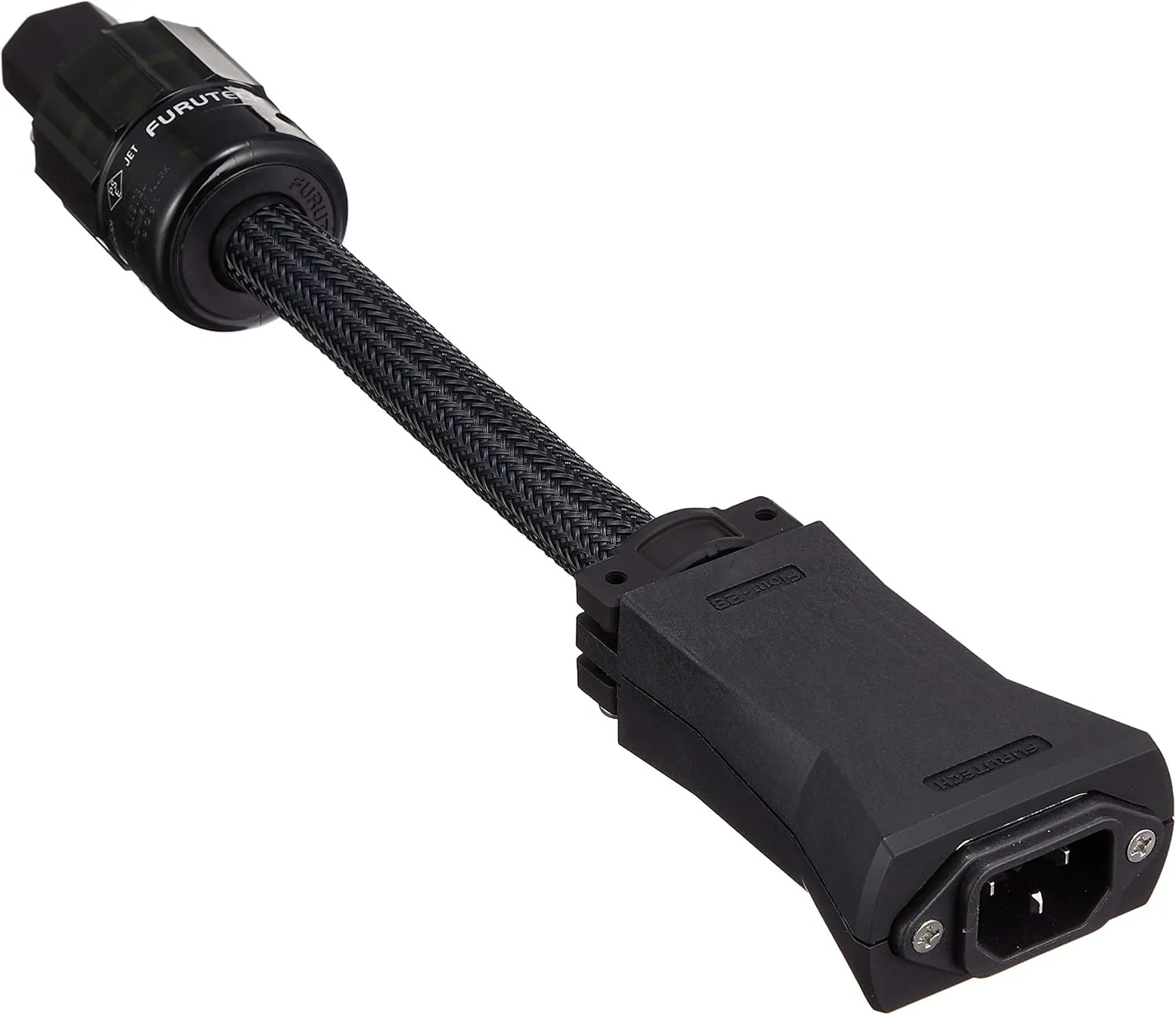

For connection between power cables and power distributors or power cables and components. Eliminate and prevent radiated AC noise Fitted with Furutech’s rhodium-plated α (Alpha) nonmagnetic FI-28R connector AC-1501R EMI-filtering IEC, rhodium-plated α (Alpha) nonmagnetic copper alloy conductors AC-1501R EMI filter features a parallel circuit with in-line coil and condenser, reducing noise at 1MHz by 10dB and at 10MHz by more than 30dB Floating Field Damper (Earth/Ground Jumper System) US Patent No.: 6,669,491 Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion Cable Specifications: Conductors:56-strand (Inner) and 29-strand (Outer) α (Alpha) OCC conductor・0.175mm x 3 cores Insulation-1: Special irradiated PE (Red/Natural/Yellow) 3.45mm diameter Insulation-2: irradiated PE surrounded by Teflon tape wrap, 3.6mm diameter Inner Sheath: RoHS-compliant flexible PVC incorporating carbon particles Shield: 0.12mm diameter α (Alpha) Conductor wire braid Sheath: RoHS-compliant flexible PVC, 14.2mm diameter Jacket: Vibration damping special Nylon Yarn Braid (Black) α (Alpha) conductor shield for protection against radiated noise RoHS-compliant flexible PVC sheath improves vibration isolation Special high-grade PE Insulation contributes to reduced capacitance Incorporating Furutech’s special passive GC-303 EMI filtering material AC-1501R Specifications: ・Rhodium plated α (Alpha) non-magnetic copper alloy conductors ・Outer cover Cr Plated steel plate ・Inner cover Nylon glass fiber ・Inner Box Nylon glass fiber ・Inner parts held by Piezo Epoxy ・Rating AC 115V/250V 15A 50/60Hz
