Technical Details
GR-12PW
Dual 4 Ohm Voice Coil Configuration
Peak Power: 2400 Watts
Competition Grade Pressed Paper Cone
High Roll Foam Surround
Advanced Air Flow Cooling System
Frequency Response: 30 - 2.5kHz
Sensitivity: 90 dB
ZG-1800.1D
Class D
TOTAL CHANNELS 1
POWER @ 1 OHM (CH X WATTS) 1 x 1800
POWER @ 2 OHMS (CH X WATTS) 1 x 900
POWER @ 4 OHMS (CH X WATTS) 1 x 450
CROSSOVER Variable Electronic 12dB Per Octave
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE 40Hz-300Hz
TONE CONTROL/PARAMETRIC EQ Built-in bass control
BASS BOOST 0-9dB
SUBSONIC FILTER 10Hz-40Hz
PHASE SHIFT 0-180 Degrees
VARIABLE VOLTAGE .2 to 6V
FREQUENCY RESPONSE 10Hz-500Hz
TOTAL HARMONIC DISTORTION (THD) <0.10%
SPEAKER LEVEL AUDIO INPUTS Yes
POWER TERMINAL 12V/GND 4 AWG
SPEAKER TERMINAL WIRE GAUGE 12 AWG
FUSING 80A
Amp Kit Highlights:
High Quality Thick 17 Feet FT 4 Gauge GA Power Cable
Premium 3 Feet FT 4 Gauge GA Ground Cable / Inline AGU Fuse Holder & 80A 100A Fuse Included!
True Sound 17 Feet FT Double Shielded RCA Cable
High Quality 17 Feet FT / 18 GA Turn-On Cable & 20 Feet FT / 16 GA Speaker Wire
All the Accessories and more / Terminal Included! Perfect for Any Installer Shop, great for Car / Truck / Motorcycle / RV / ATV

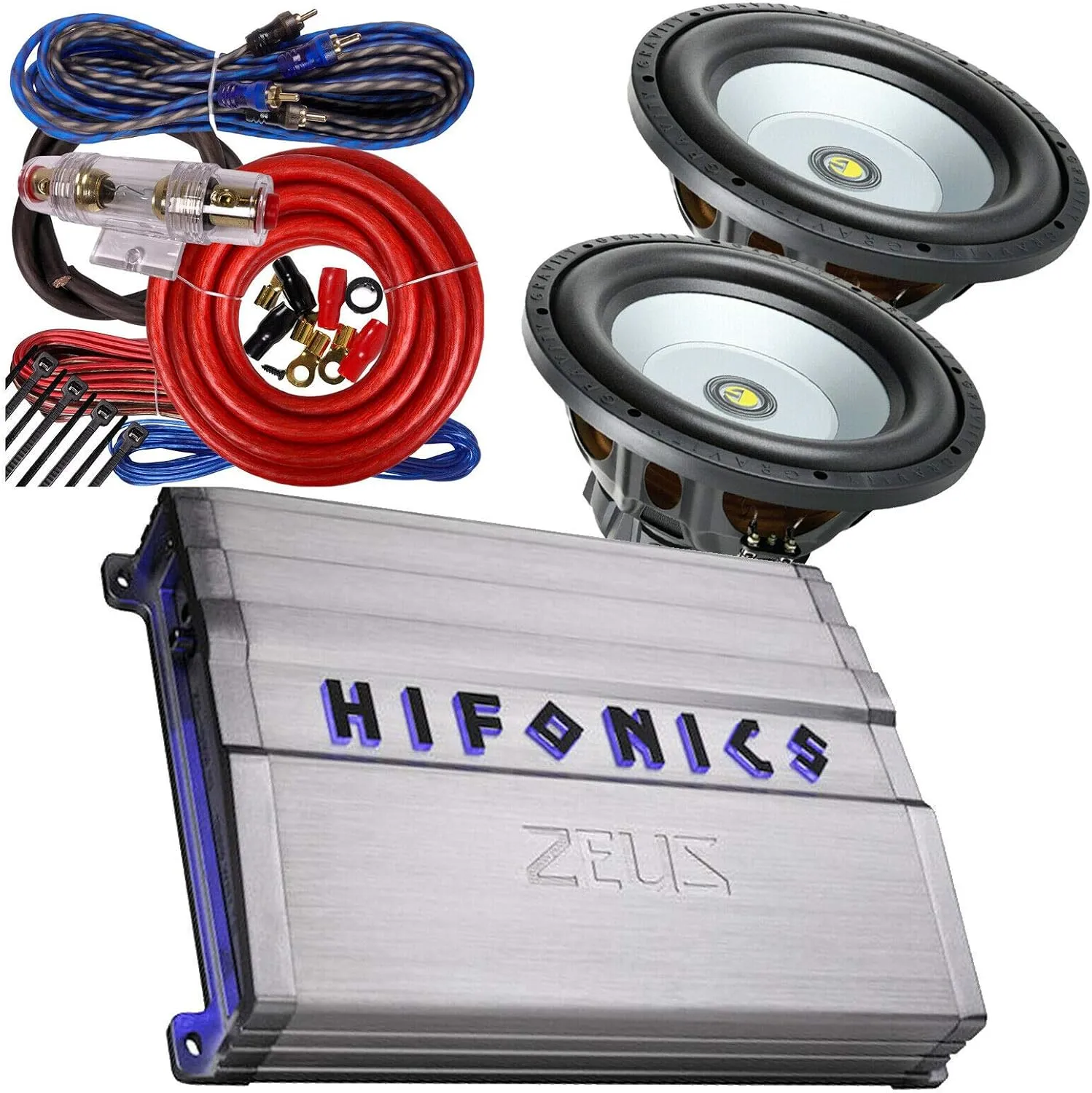

Package Contents:
Pair Gravity GR-12PW
Amp Kit 4 Gauge
Hifonics Zeus ZG-1800.1D
