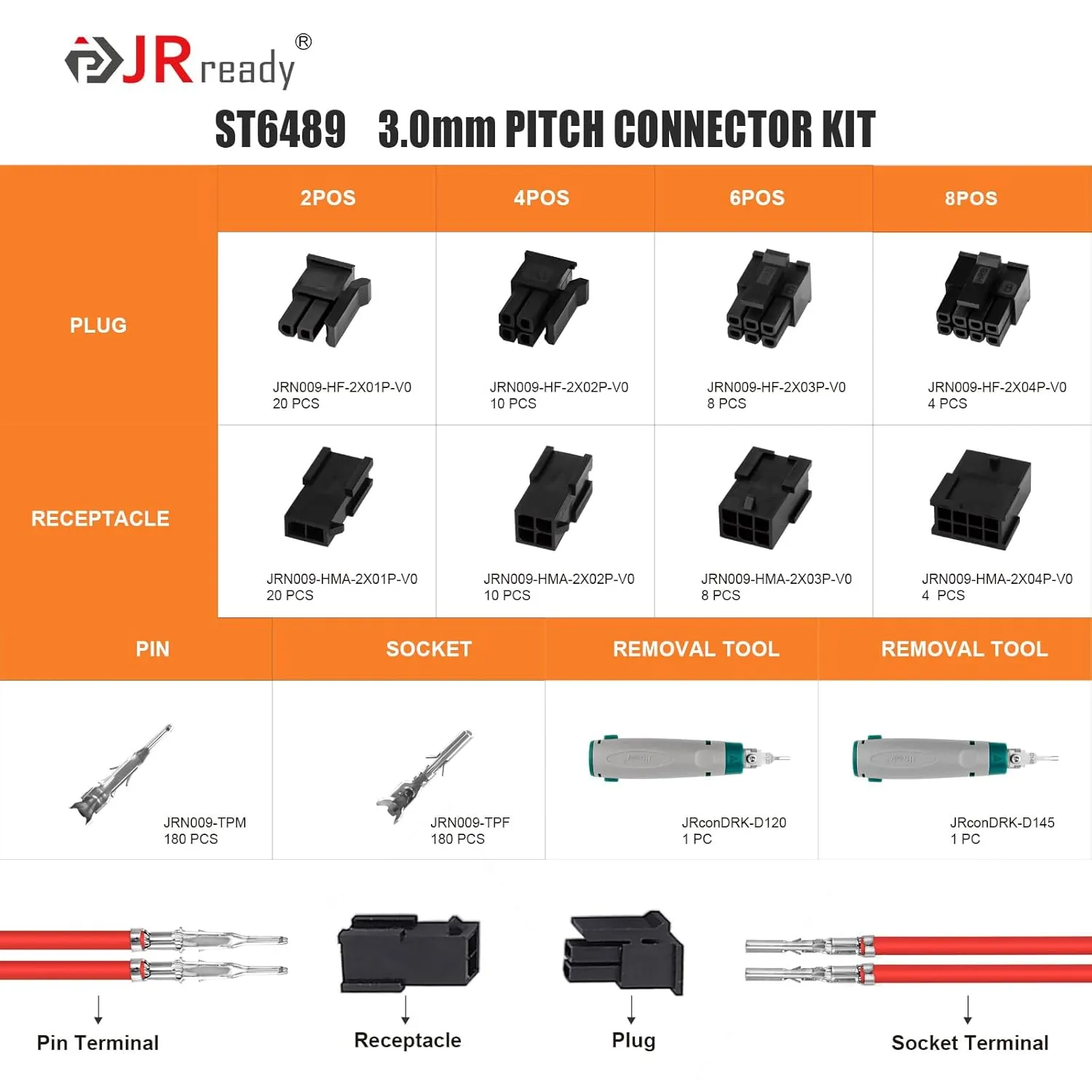

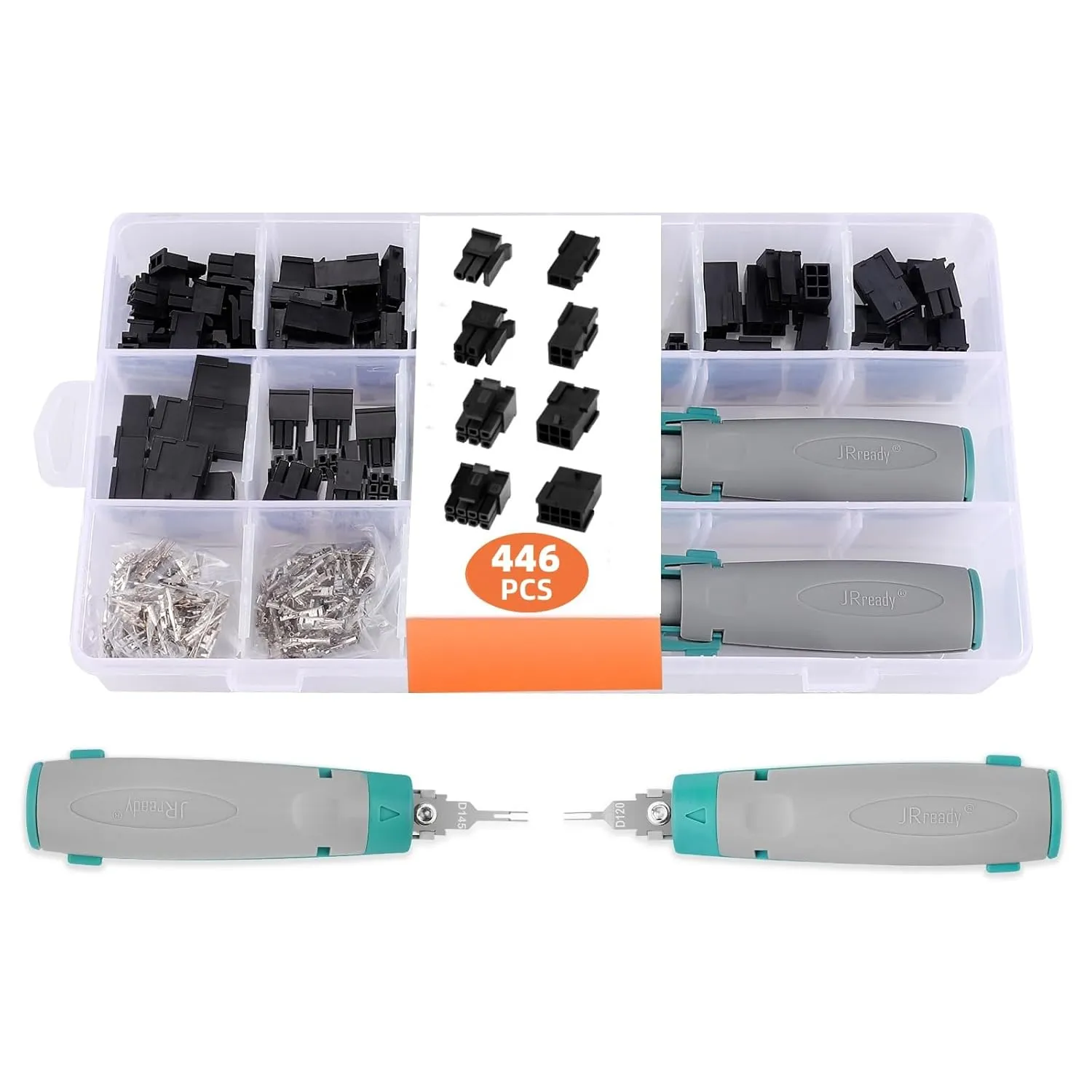

- 【Package List】Include 84 sets 2, 4, 6, 8 pin connectors, pin and sockets 180 pairs,2 pcs pin extractor tool
- 【Housings】 made of high quality PA66 material，sturdy and durable，high and low temperature resistance -40-105℃.Compact design, suitable for applications with limited space.
- 【High Conductivity Terminals】 made of Phosphor bronze material tin plating, high temperature resistance,corrosion resistance,high conductivity, wire range 20-24 AWG, rated current 7A.Compatible with Molex Micro-Fit 3.0 43030 43031 Series Crimp Terminal, Female Terminal :43030-0001/43030-0007,Male Terminal :43031-0001/43031-0007
- 【Housing Compatible Models】Compatible with molex Micro-Fit 3.0 series connector 2 pin receptacle and plug model:43025-0200/43020-0201, 4 pin receptacle and plug model: 43025-0400/43020-0401,6 pin receptacle and plug model: 43025-0600/43020-0601; 8 pin receptacle and plug model:43025-0800/43020-0801
- 【Molex Pin Extractor Tool】Special Processing techniques,High toughness, not easily deformed, durable,The shape of the shaft tip is specially designed,Not damaging housing and terminals.Design with latch cover,Protects the tip of the extraction tool from damage due to drops. Product model：JRconDRK-D120,Application：Molex Micro-Fit 3.0(mx 3.0) Female Terminal. Product model：JRconDRK-D145,Application：Molex Micro-Fit 3.0(mx 3.0) Male Terminal
- 【 Application 】 Providing cost-effective solutions for various industrial applications and household appliances,such as ceiling fans with lights, washing machines, refrigerators, microwave ovens, consumer electronics, network servers, industrial automation, data computing, etc.
- Product Dimensions : 9.45 x 5.2 x 1.89 inches; 10.09 ounces
- Date First Available : September 13, 2024
- Manufacturer : ST6489
- Country of Origin : China
