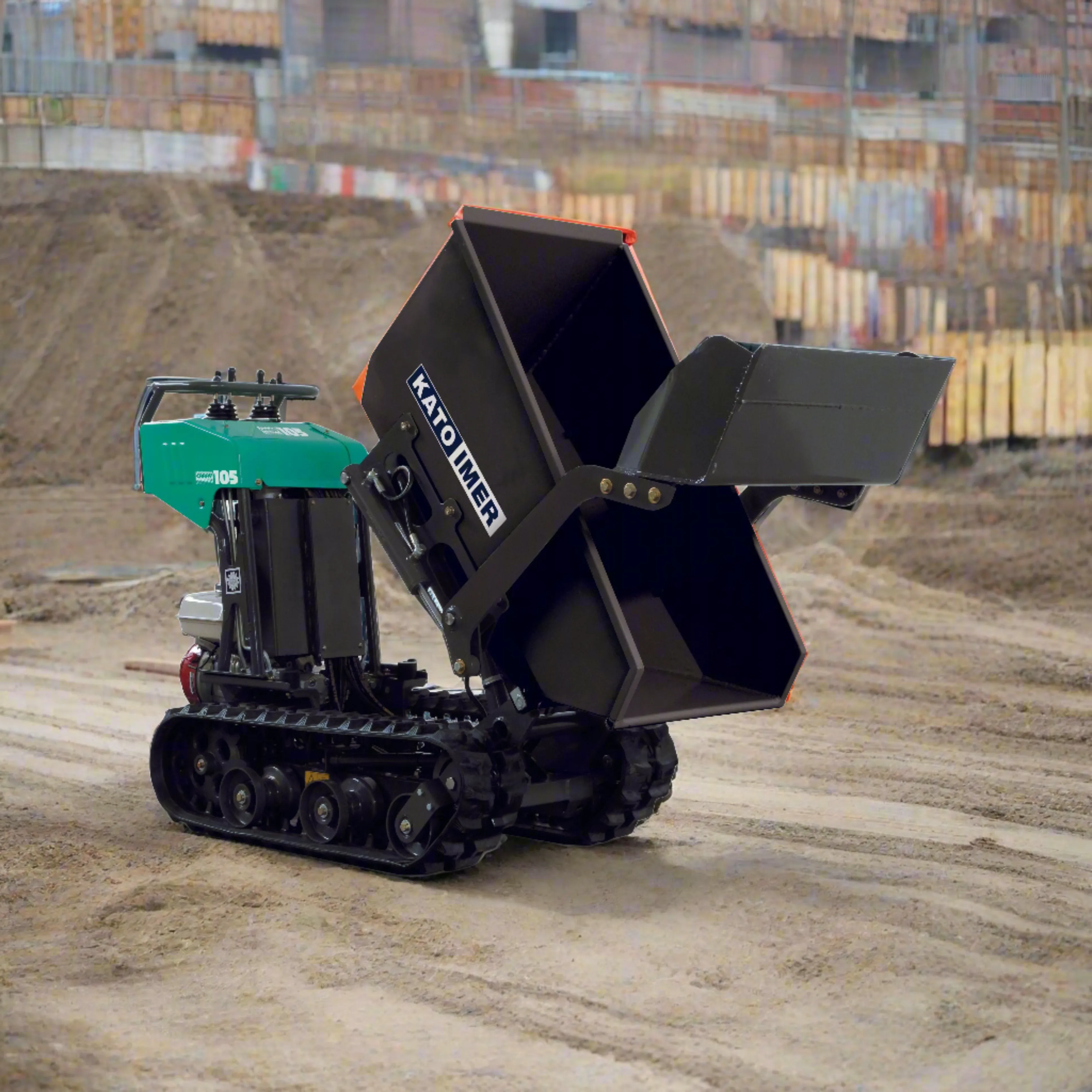

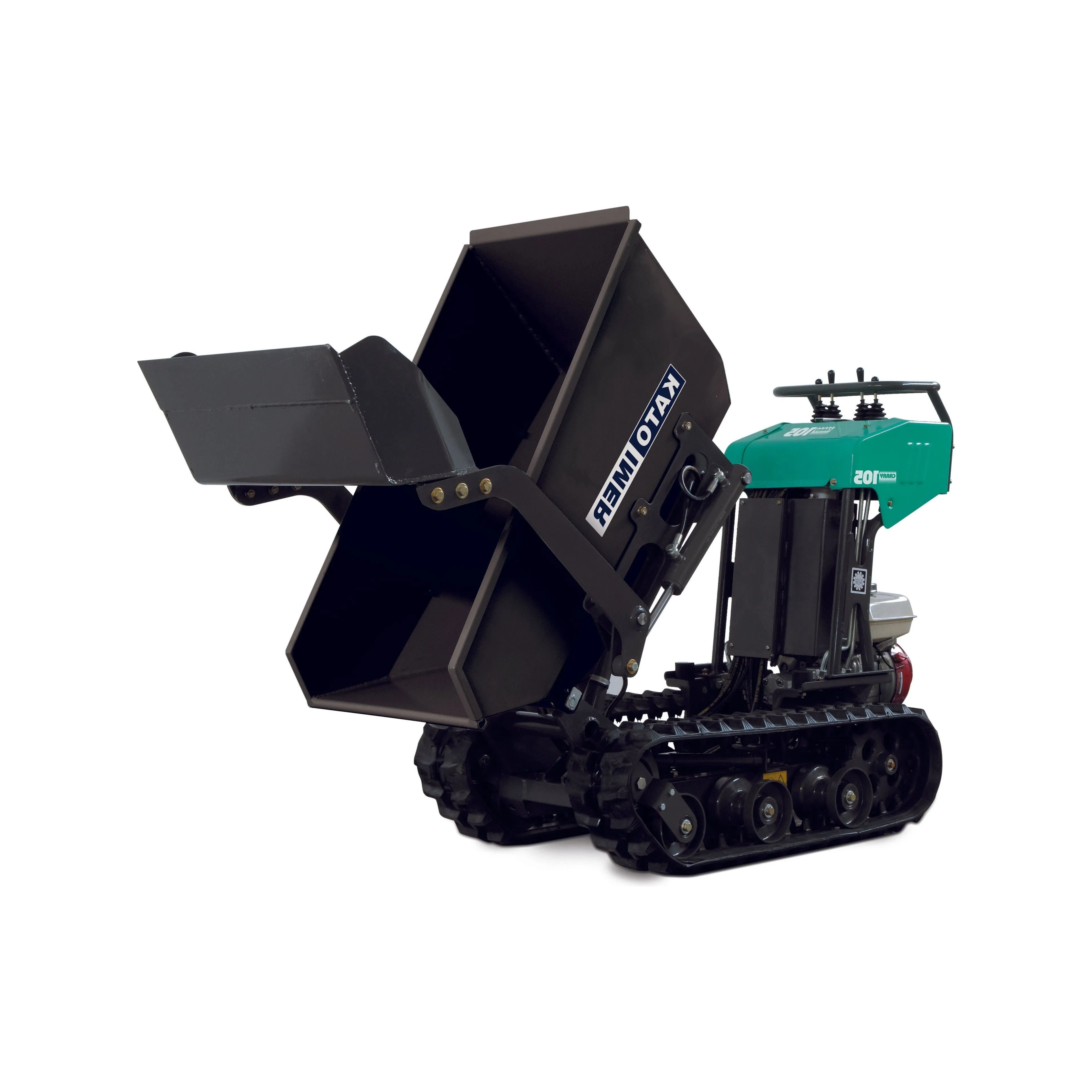

IMER Carry 105 Gas Mini Track Dumper with Tipping Bucket and Self-Loading Shovel
5105001

Product Description

The new Tracker 811 mini-dumper is a highly agile and versatile machine, small in size, yet able to handle a large load on all kinds of terrain, including steep gradients. The Tracker 811 may be equipped with a wide range of accessories to meet various requirements: skip for construction, self-loading shovel, bed with opening sides.

Specifications

• Engine: Honda GX200, 8 hp
• Machine weight: 640 lbs
• Operating load: 1,102 lbs
• Payload capacity: 8 cu ft
• Speed: 2 mph
• Max allowed slope when empty: 20° - 36%
• Max allowed slope when loaded: 11° - 20%
• Ground clearance: 4''
• Start: Electric

Standard Equipment

• ​​Includes tipping bucket
• Engine w/electric start, Honda Gas Engine 8 hp

Features

• Simple and intuitive control console
• A manual parking brake prevents the drive from running by mechanically locking the LH wheel
• The amount of oil in the machine’s hydraulic circuit allows long intervals
  between servicing
• Narrow 27” width to fit through standard doors and gates
• Extremely compact dimensions and limited weight guarantees high-level performance
• Replacing the attachments is quick and easy

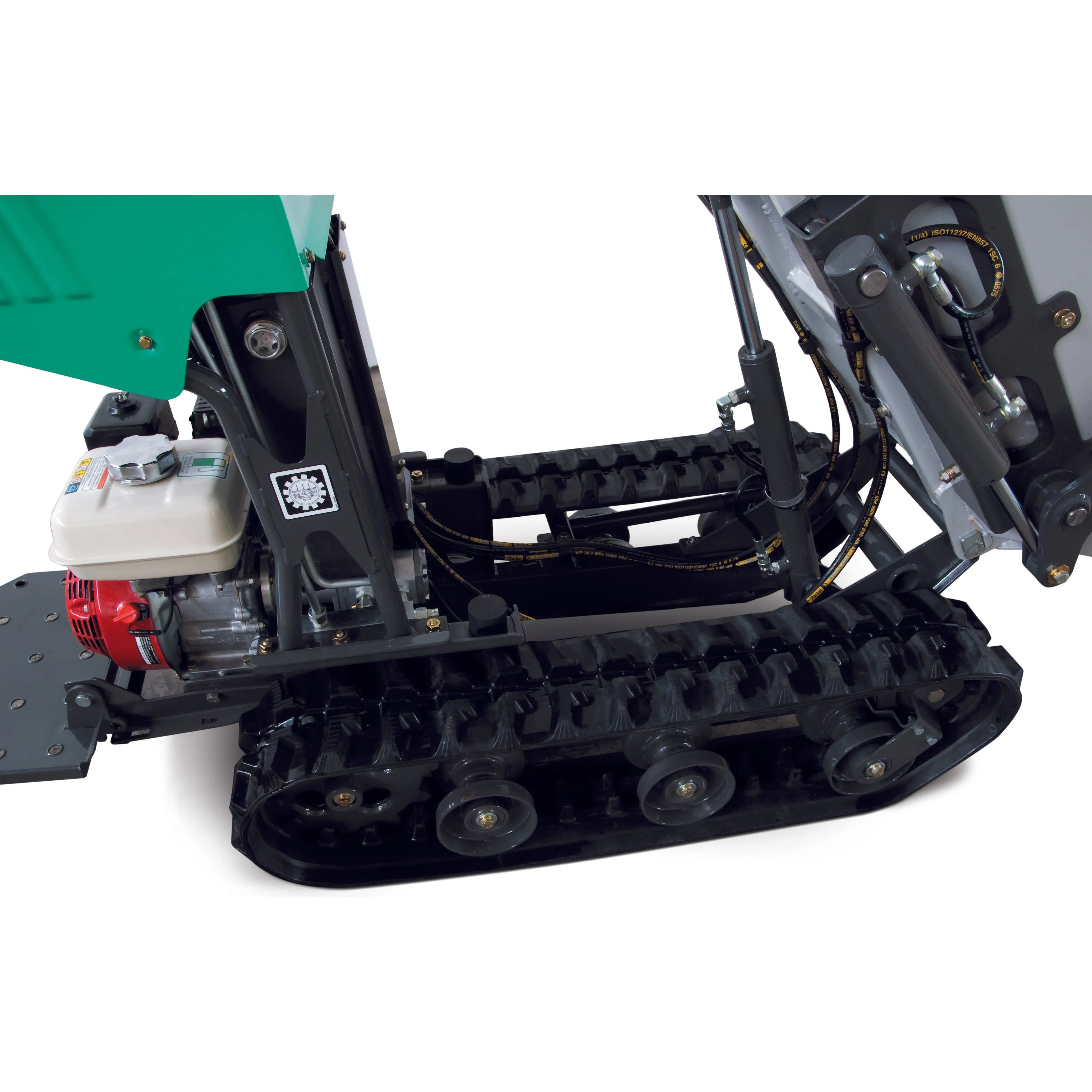

• The innovative track system ensures the rubber tracks are always perfectly tensioned, easily adjusted via a bolt on the lower carriage

Dimensions

• Length 62-½ ''
• Height 44-½ ''
•  Width 27''
