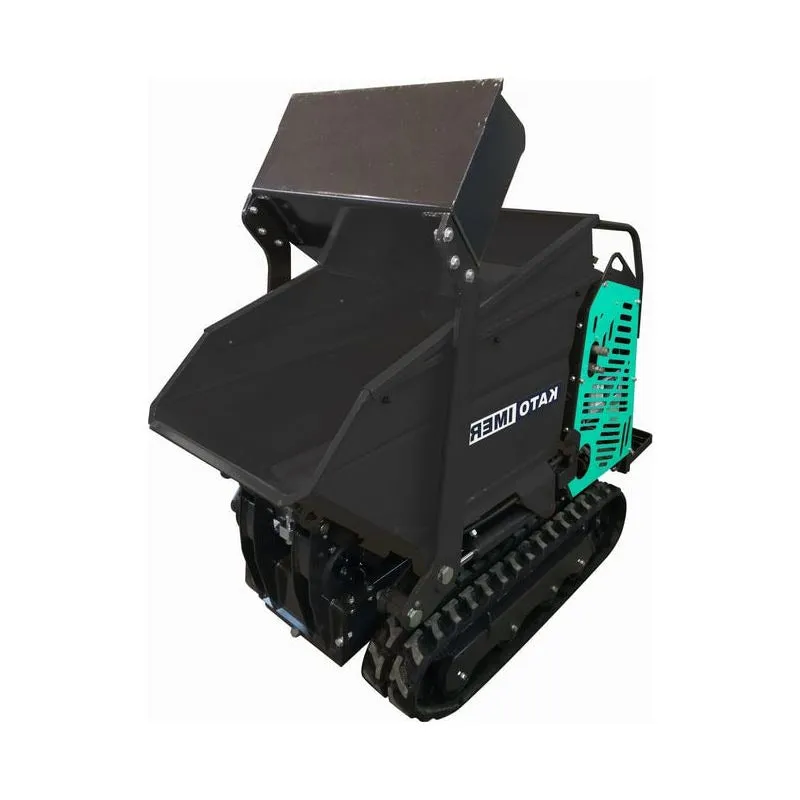

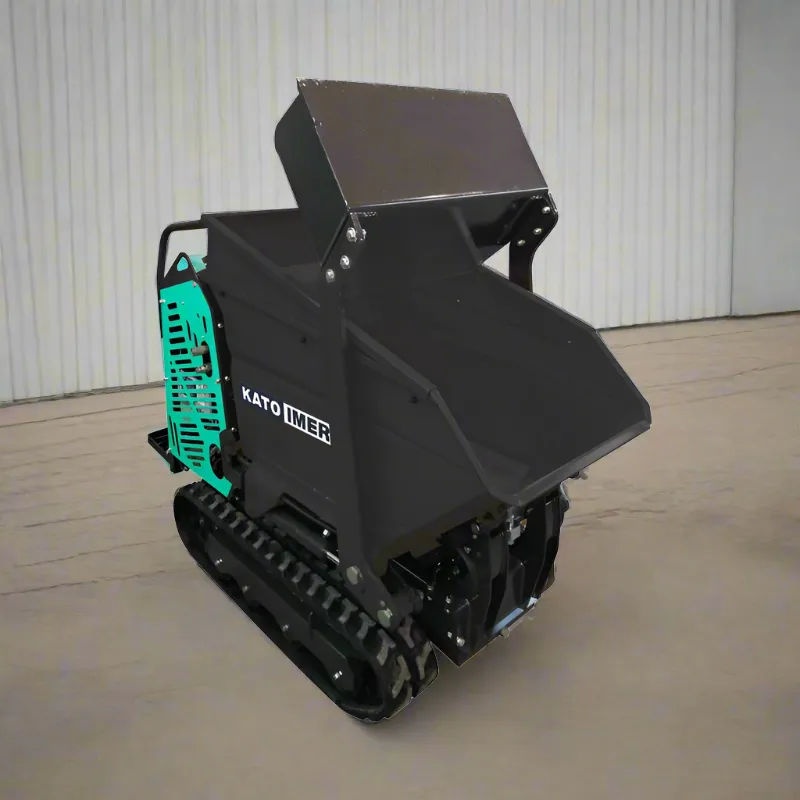

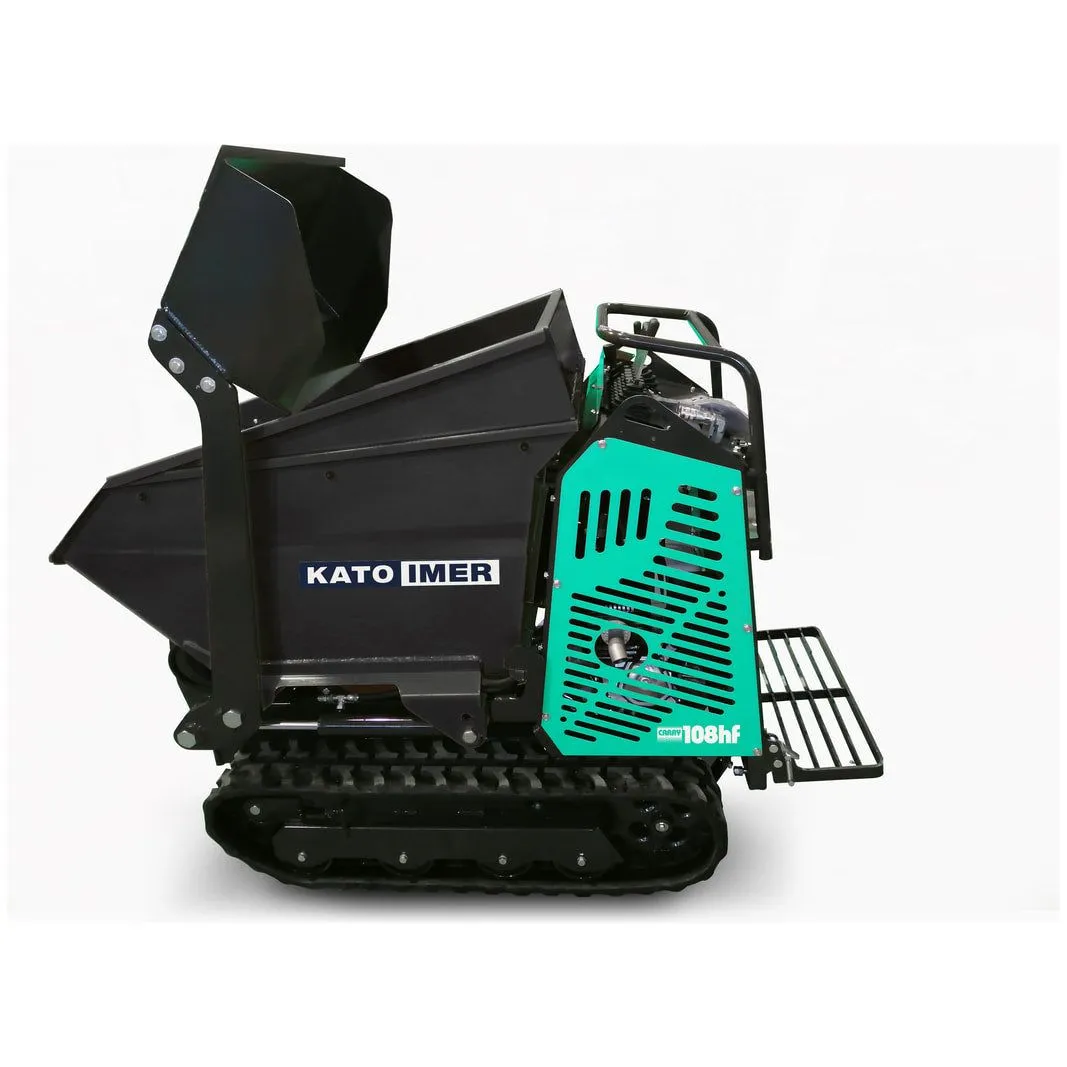

IMER Tracker 1317HF Gas Mini Track Dumper w/ Tipping Bucket and Self-Loading Shovel 5108001

Product Description

The Tracker 1317HF “High Performance” mini-dumper is a powerful, yet compact machine, engineered with four pumps to provide a high oil flow rate to increase speed, and to drive attachments that require increased power for heavier projects, such as mulching and snow removal. The Tracker 1317HF coupling/uncoupling system makes changing attachments quick and simple.  While the tracks supply power and stability on the ground, the float function prevents attachments from bouncing, providing additional stability and safety for the operator, especially on uneven or sloping terrains. The standard Tracker 1317HF unit includes the tipping bucket and self-loading shovel.

Specifications

•  Engine:Honda GX390, 11 hp
•  Machine weight: 1,329 lbs
•  Operating load: 1,764 lbs
•  Payload capacity: 13 cu ft
•  Speed: 3 mph
•  Max allowed slope when empty: 20° - 30%
•  Max allowed slope when loaded: 7° - 12%
•  Ground clearance: 3''
•  Start: Electric

Standard Equipment

• Includes tipping bucket and self-loading shovel
• Engine w/electric start, Honda GX390  11 hp

Product Document

Product Sheet
