Biotec 38000 Screenmatic 2 Flow Through Gravity Filter by Oase

The BioTec ScreenMatic2 38000 is replacing its predecessor, the OASE BioTec 32000. This completely redesigned flow-through filter sets the tone for a peaceful and beautiful outdoor space by providing a clean and clear pond - quietly. For koi and larger ponds, the BioTec ScreenMatic2 38000 is a multi-zone filter for ponds up to 38,000 gallons. This advanced, innovative filter offers multiple upgrades including automatic debris separation using the self-cleaning screen, a double-sealed motor, a larger sludge basket, a new filter foam design, and optimized water level control. All upgrades ensure longer filter service life, improved filtration, and reduced maintenance. This eco-friendly filter promises a healthy and algae-free pond.

FEATURES:



• The successful high-performance multi-zone filter for koi and larger pond - completely redesigned.
• The BioTec ScreenMatic2 38000 is replacing its predecessor, the BioTec 32000 (item no. 50119).

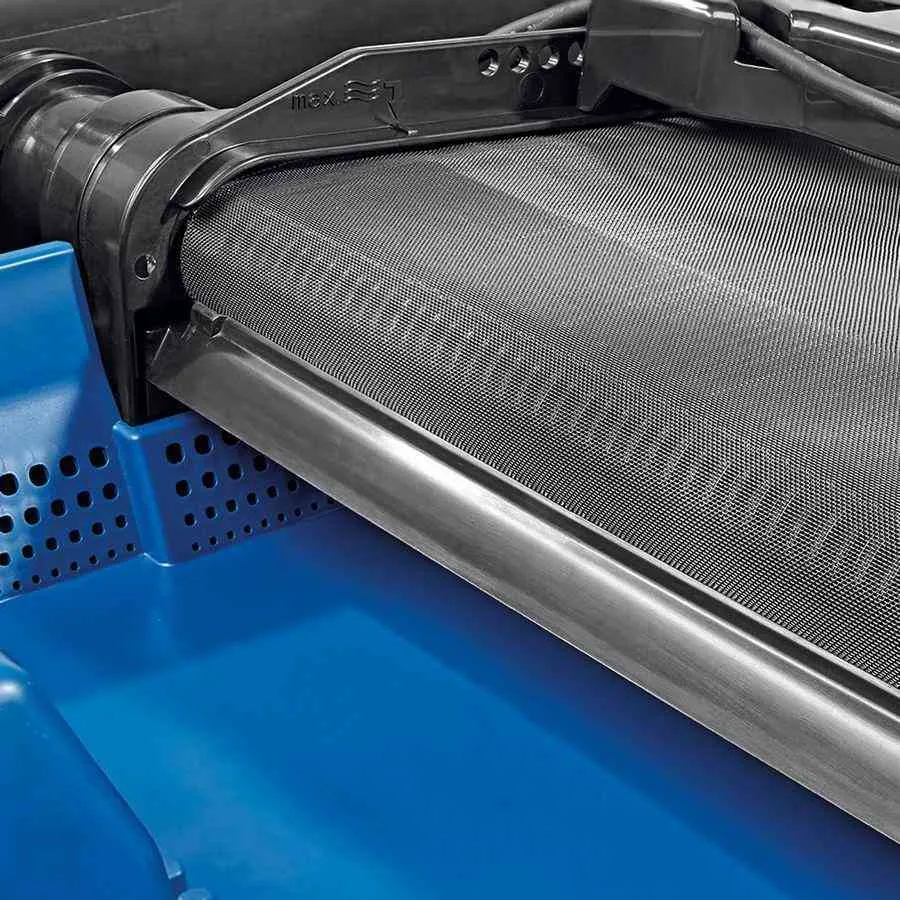

• The BioTec ScreenMatic2 has a double-sealed motor and a reinforced screen for an extended service life.

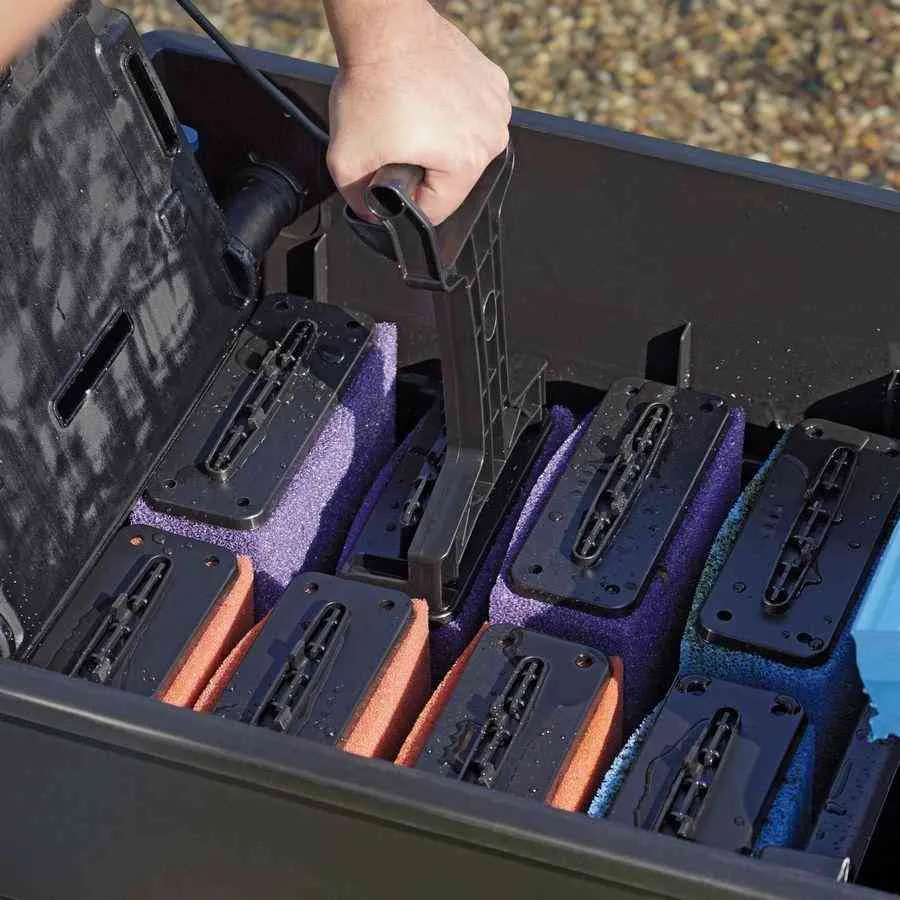

• The new foam design and optimized water level control ensure longer filter service life, improved filtration, and reduced maintenance.
• Intelligent cleaning sensors detect the pollutant level and automatically activate the screen.

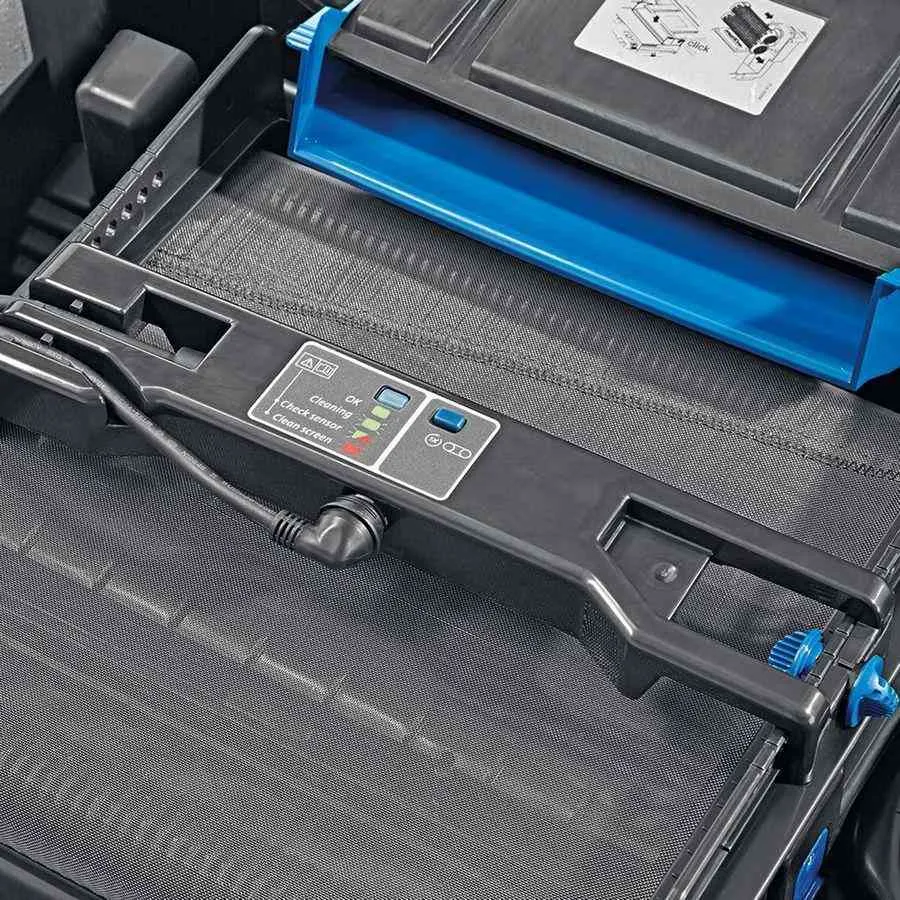

• An active LED display shows the required cleaning measures.
• Manual belt run is now possible via a push button.
• Optimized water distributors ensure an ideal water flow over a broad range of pumps, with no clogging.

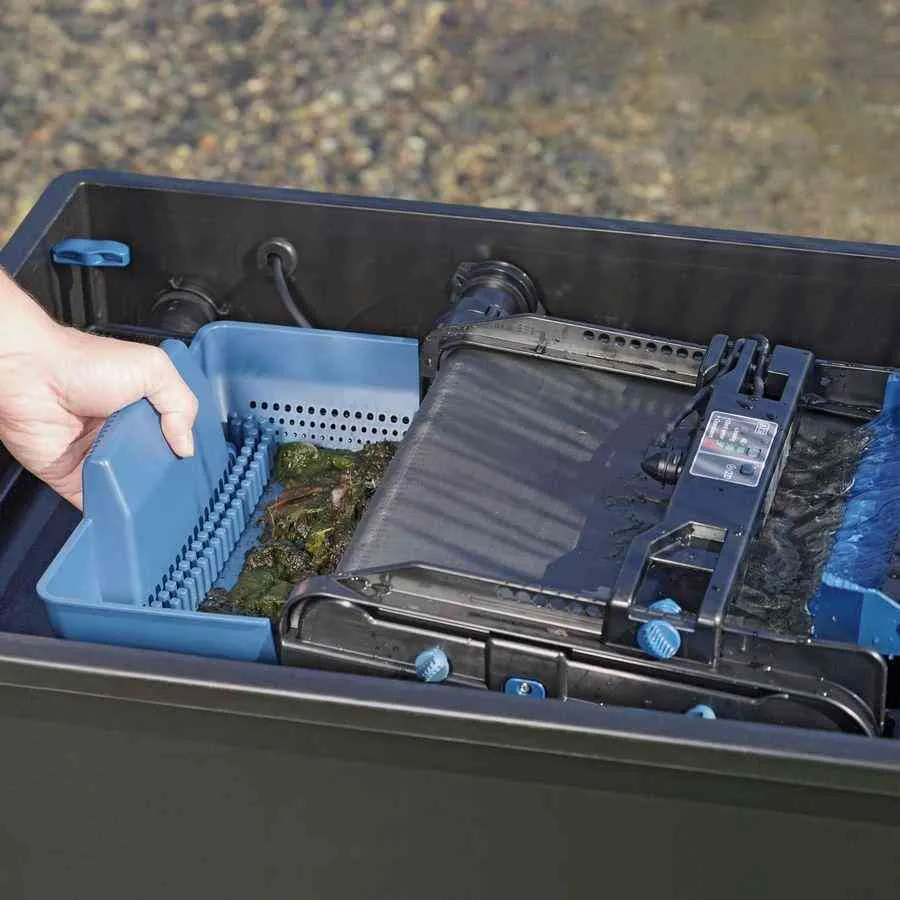

• Sludge basket completely redesigned for greater volume and greater convenience in handling the basket.
• New, innovative design reduces contamination by preventing water from leaking back into the filter chamber.
• Rubberized separator lip separates out large debris for better filtration.
• Made with weatherproof, recycled plastic which can be easily winterized by draining and leaving in place.
• Includes a brush for easy cleaning of the belt filter.
• Features storm-safe fastening clips on each lid ensure safety during heavy winds.
• We recommend replacing your filter pads once a year.
• When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee. Learn more about the Oase Clear Water Guarantee Here
• 3 year (2 1) extended limited warranty

SPECIFICATIONS:

• Dimensions 47 x 31.5 x 30 in.
• Net Weight 209 lbs.
• Operating Voltage 120V / 60 Hz
• Power Consumption 5W
• Power Cable Length 7 ft (power supply) 16.4 ft.
• Max. Flow Rate up to 4623 GPH
• Coarse Debris Separation 300 Microns
• Input Connections 1, 1 1/4, 1 1/2, 2 in.
• Outlet Connections 2 in.
• Sludge Drain Connections 2 in.
• Max. Pond Size (no fish) 39000 gallons
• Max. Pond Size (small fish) 19000 gallons
• Max. Pond Size (Koi) 9500 gallons

WHAT'S IN THE BOX?

• ScreenMatic controller
• 1, 1 1/4, 1 1/2, and 2 in. Inlet adaptors
• 4 in. Outlet adaptor
• Cleaning tool
• Hose clamps
• Gaskets

When a pond owner uses specifically marked CWG products, they are guaranteed to have clear water and minimal maintenance. We guarantee that when a tape measure is placed vertically into the pond to a depth of 3 feet, the water will be clear enough to read the 1 inch mark at the tip of the tape measure.
