- [POWERFUL HELICOPTER PERFORMANCE] Unleash the potential of your remote control helicopter with the high performance 2212 1400KV motor , ensuring impressive speed and agility in the a ir .
- [PRECISE CONTROL WITH 9G SERVO] The SG90 9G micro servo provides accurate and responsive control , weighing only 9g/0 . 3oz with a torsion of 1 . 5 kg/cm , enhancing your helicopter's maneuverability .
- [RELIABLE 30A XT60 ESC] Experience safety and reliability with the 30A XT60 ESC featuring safety arming , throttle calibration , and comprehensive against low pressure , overheating , and semaphore loss .
- [VERSATILE COMPATIBILITY] Compatible with Li ion and nic kel cadmiu m batteries , this kit offers flexibility in adapting to different brushless motors , ensuring optimal performance for various setups .
- [DURABLE MATERIALS AND EASY INSTALLATION] Constructed with high quality metal and plastic , the kit is for long-lasting and easy to install , providing a robust solution for both beginners and experienced RC enthusiasts .
Specification :
Item Type : Helicopter Fixed Wing Set
Material : Metal Plastic
Color : As Picture Shown
Weight : Approx . 143 . 0g/5 . 0oz
SG90 9G Servo :
Length : Approx . 21 . 5mm/0 . 8in
Width : Approx . 11 . 8mm/0 . 5in
Height : Approx . 22 . 7mm/0 . 9in
Weight : 9g/0 . 3oz
No Load Speed : 0 . 12 seconds / 60 degrees (4 . 8 V)
Locked Rotor torsion : 1 . 5 1 . 7kg/cm (4 . 8V 6V)
Working Temperature : 30 to 60 degrees Celsius
Dead Zone Setting : 5 Microseconds
Working Voltage : 4 . 8V 6V
2212 Motor :
Length : Approx . 30mm/1 . 2in
Width : Approx . 27 . 5mm/1 . 1in
Shaft Diameter : Approx . 3 . 17mm/0 . 1in
kv : 1400kv
30A ESC :
Plug : XT60
Continuous Current : 30A
Maximum Current : 40A (10S)
Power Input : 2 3Pcs Li ion Batteries or 5 9Pcs nic kel cadmiu m Batteries (not Included)
BEC Output : 2A / 5V (Linear Regulator Mode Linear Mode)
Maximum Speed : 2 Pole BLM is 210 , 000rpm , 6 Pole BLM is 70 , 000rpm , 12 Pole BLM is 35 , 000rpm
Application : RC Helicopter

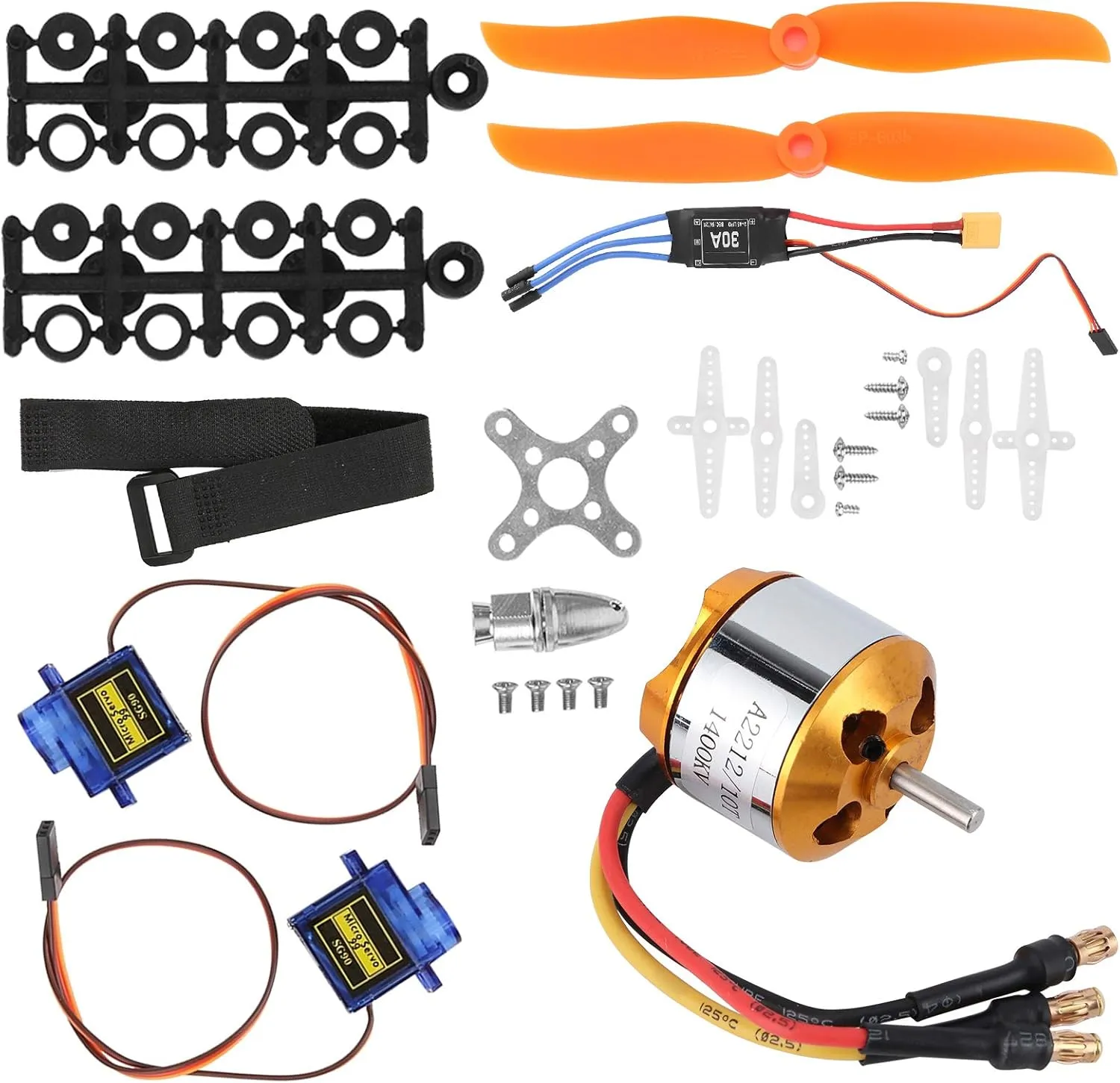

Package List :
1 x Motor
2 x Propeller
2 x Servo
1 x ESC
1 x Motor Base
1 x Motor Head
6 x Servo Arm
1 x Strap
10 x Screw
2 Row x Propeller Gasket
