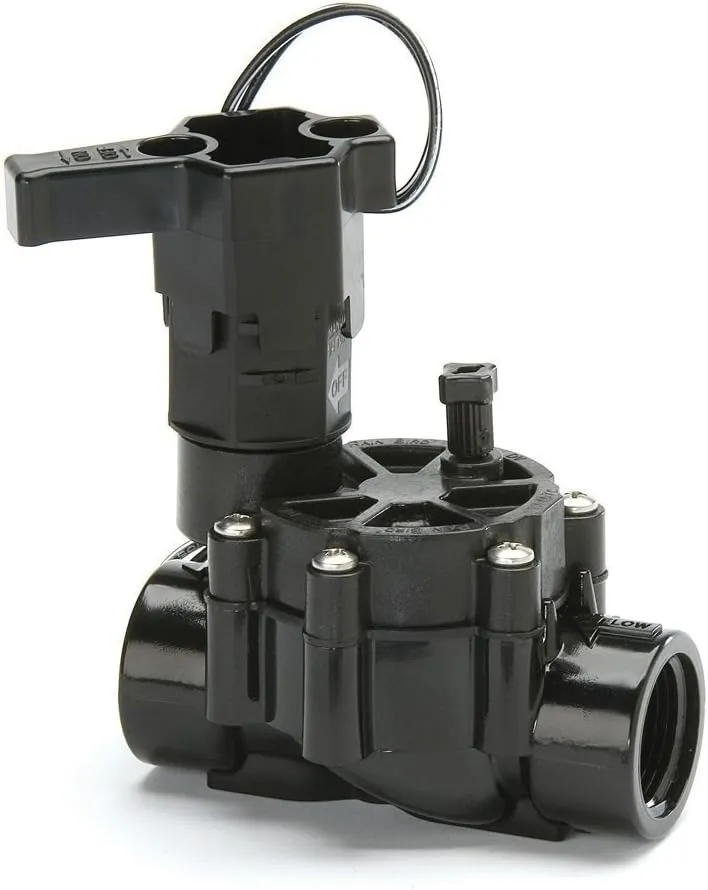

Product Information:Economical irrigation valve for residential and light commercial applications. Features:#149; Doublefiltered pilotflow design for maximum reliability#149; Balancedpressure diaphragm for long life#149; External bleed to manually flush system of dirt and debris during installation and system startup#149; Internal bleed for sprayfree manual operation#149; Energyefficient, lowpower encapsulated solenoid with captured plunger and 90mesh (200 micron) solenoid filter#149; BunaN diaphragm with selfcleaning 90 mesh (200 micron) pilot water filter and captive spring#149; Operates in lowflow and Xerigation applications when the RBY filter is installed upstream#149; 1.25" (3,2 cm) stainless steel phillips head screws#149; Slipbyslip configuration for installation with poly pipe#149; Male by barb configuration for flexible installations especially when submains are deep#149; Accepts latching solenoid for use with Rain Bird batteryoperated controllers Specifications:#149; Model: 100DVOperating Range#149; Pressure: 15 to 150 psi (1,03 to 10,34 bar)#149; Flow: 0.2 to 40 gpm (0,05 to 9,08 m/h; 0,76 to 151,4 l/m)#149; Water Temperature: Up to 110 degrees F (43 degrees C)#149; Ambient Temperature: Up to 125 degrees F (52 degrees C)Electrical Specifications#149; 24VAC 50/60 Hz (cycles/sec.) solenoid#149; Inrush current: 0.30 A (7.2 VA) at 60 Hz#149; Holding current: 0.19 A (4.6 VA) at 60 Hz#149; Coil resistance: 4255 ohmsDimensions#149; Height: 4 1/2" (11,4 cm)#149; Height (Angle): 5 1/2" (14 cm)#149; Length: 4 3/8" (11,1 cm)#149; Length (MM): 5 3/8" (13,6 cm)#149; Length (Angle): 3 3/4" (9,5 cm)#149; Length (MB): 5 3/4" (14,6 cm)#149; Width: 3 1/3" (8,4 cm)
