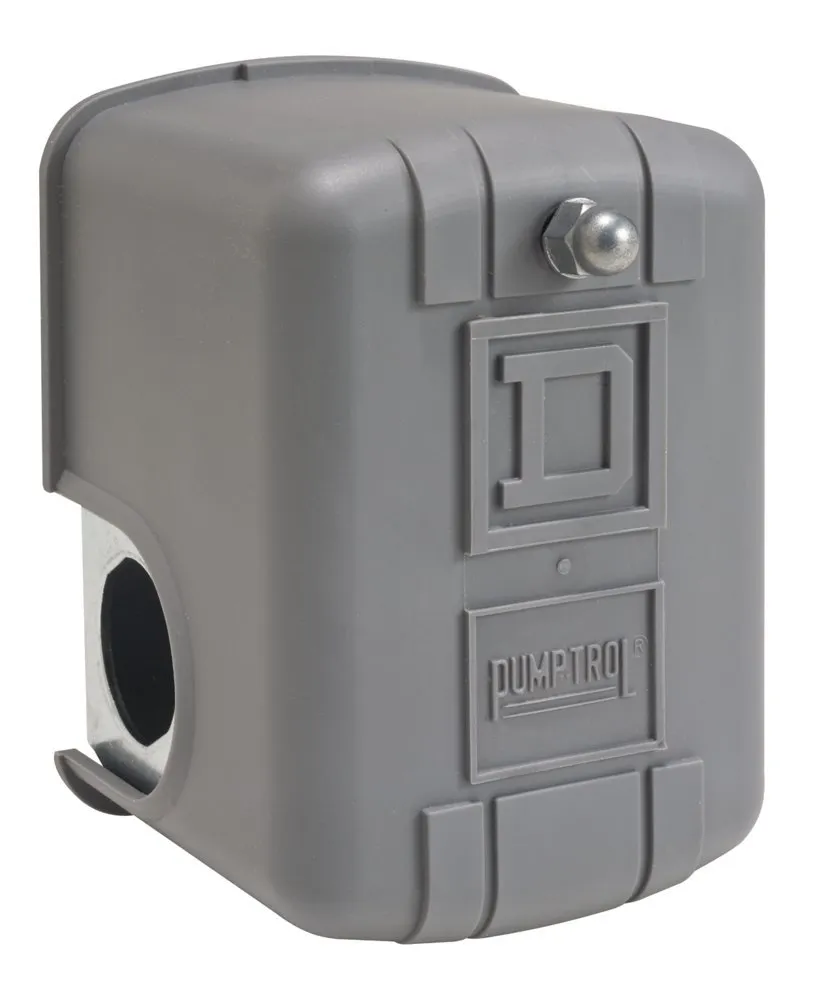

This Square D Pumptrol 9013FHG9J43 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 80 psi. The switch has a 1/4" NPT external fluid connection and is suitable for use with a lower-horsepower motor with 1. 5 hp or less. The non-adjustable differential is 20 psi, and the adjustable cut-out range is 40-100 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. Cover is black. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

• Product Dimensions ‏ : ‎ 6 x 4.1 x 4.7 inches; 12.95 ounces
• Date First Available ‏ : ‎ August 12, 2015
• Manufacturer ‏ : ‎ Telemecanique Sensors
• Country of Origin ‏ : ‎ Mexico
