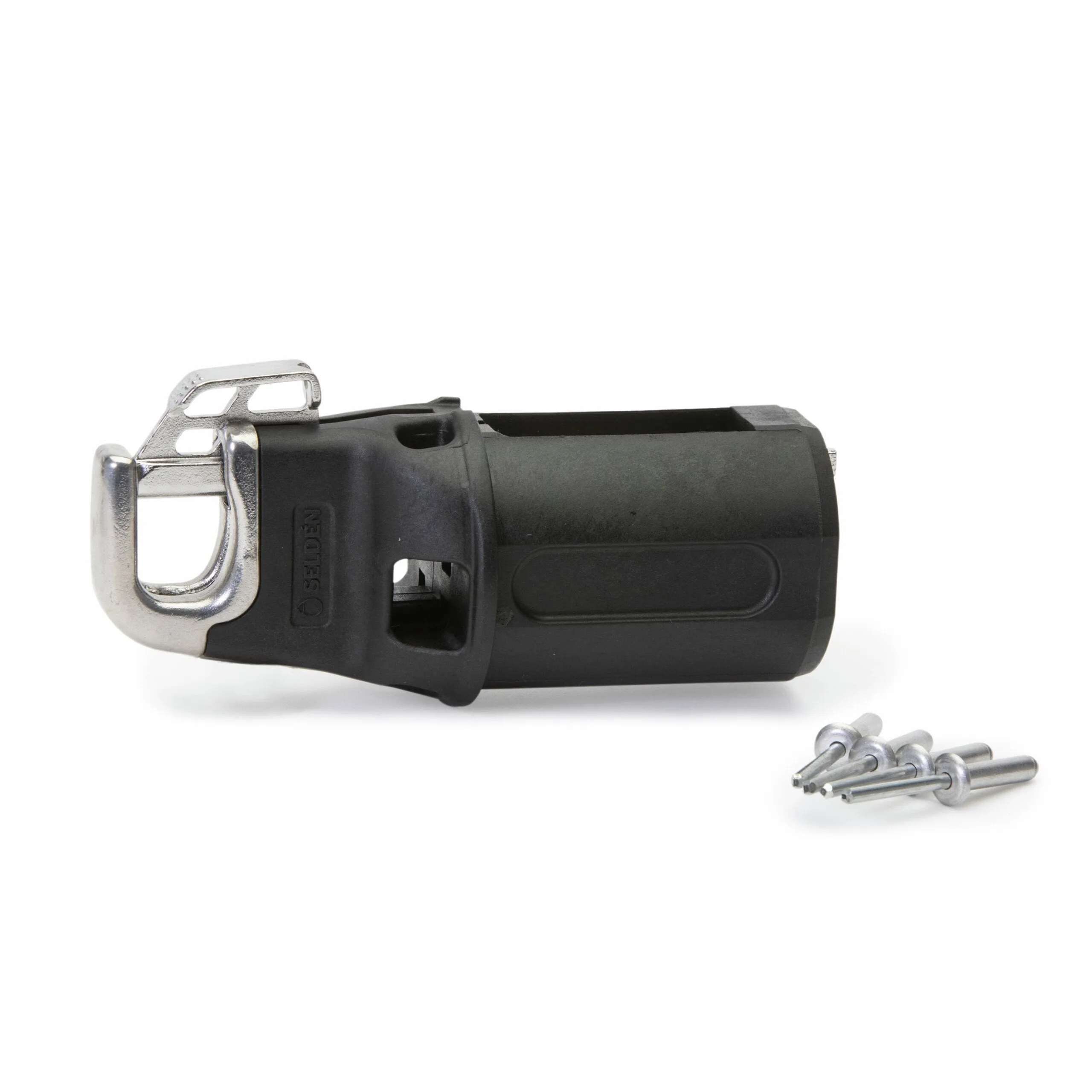

Composite spinnaker pole fitting

The end fitting is made of glass fibre reinforced polyamide composite. This material makes for a combination of low weight and strength and it also prevents damage to boat or mast when the pole is on the fore deck. The claw has a well rounded stainless chafe guard, preventing damage to sheet and guy.

The stainless, spring loaded plunger is operated at the end fitting or with a release line. Attachment holes for spinnaker pole lift and downhaul or bridles.

The inner part of this fitting has a diameter of ø64 mm and is used for Seldén ø72/84/96 mm alu poles and ø77/88/90 mm carbon poles.

4 Monel pop-rivets (ø6,4x25 mm) and a 0,5 mm thick spacer shim are included in the kit. The pop-rivets are only to be used for installation in an aluminium section - not in carbon fiber.

Adaptor 534-782 for installation in a ø96 mm pole section has to be ordered separately.

Connect only to Seldén's ø30 mm Spinnaker pole eyes 534-531-01, 534-528-01, 534-529-01, 534-507-01 or 534-529-02.

See Yacht catalogue, version 8, page 147.

.

This fitting does not include a Trip-Trigger function (see 534-854-11).
