IMER Tracker 1215 Hi-Tip 11.6 cu ft Capacity, 11 HP Honda GX390 Gas Engine, 1543 lbs Operating Load 5107002
Product Description

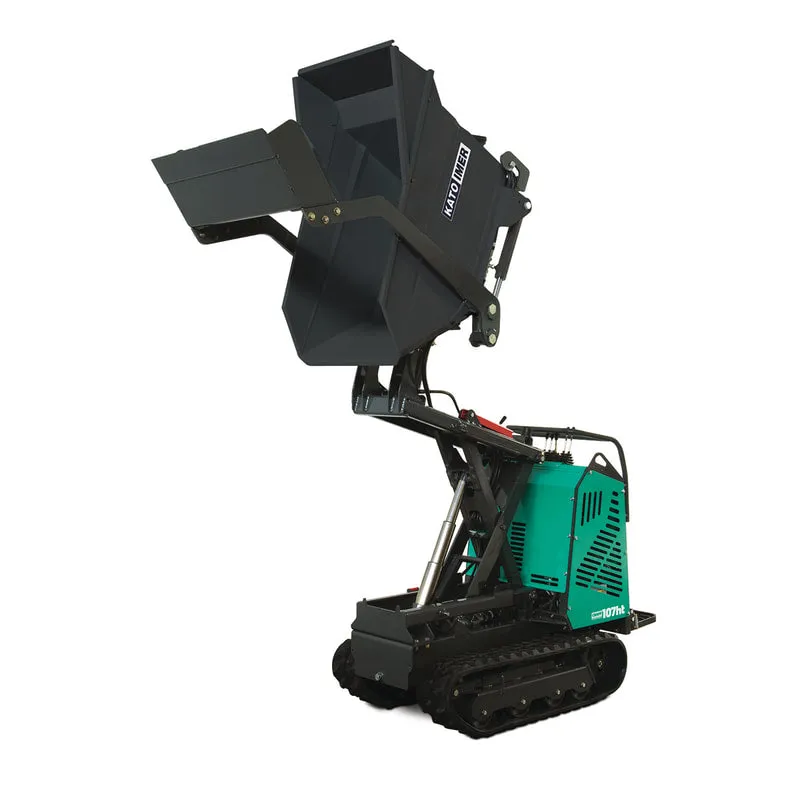

The Carry 107 mini-dumper is the ultimate 1-person ride-on hauler. Designed with a compact 30” width to fit through the narrowest of backyard gates or interior doors. While conventional buggies and
tracked machines do not offer an extendible undercarriage, the rubber tracks on the Carry 107 can extend from 30” to nearly 42” in width to provide the added stability required on challenging job sites with hills and uneven slopes, plus the extended track provides added protection to lawns and floors preventing unwanted damage.
With the “hi-tip” kit, a single operator is able to quickly and effortlessly load and dump material directly onto transport vehicles, and waste management options. The raised position of the skip makes the machine suitable for work on flat or moderately bumpy surfaces, yet can tackle steep inclines even when fully loaded.
Specifications
- Engine:Honda GX390, 11 hp
- Machine weight: 107 / 107 HT 950 lbs / 1510 lbs
- Operating load: 1543 lbs
- Payload capacity 11.6 cu ft
- Speed: 2.5 mph
- Max allowed slope when empty: 15° - 26%
- Max allowed slope when loaded: 7° - 12%
- Ground clearance: 4''
- Start: Electric
Standard Equipment
- Includes "Hi-Tip" bucket and self-loading shovel
- Engine w/electric start, Honda GX390 11 hp
Dimensions
- Length: 72''
- Height: 44-½"
- Width: 30"
Product Document
Product Sheet
