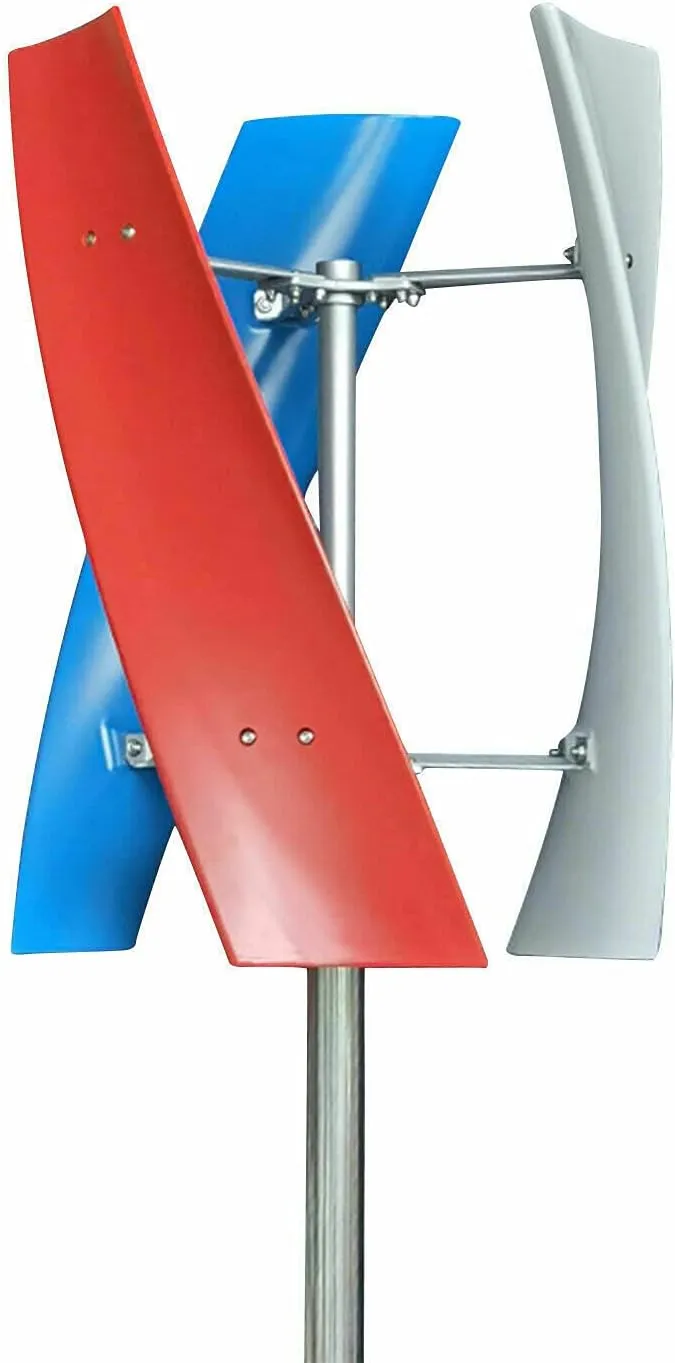

- 【HIGH QUALITY BLADES】The the wind generator's blades are synthetically injection molded with high-strength FRP material, and the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably and quietly. Coreless PMG provides lower start torque/wind speed and longer service life, design service life 10~15 years. Maximum speed protection, no matter what the wind speed is, it does not exceed 300 RPM.
- 【HIGH POWER GENERATION PERFORMANCE】Our wind turbine generator is designed with 3-phase AC PMG (permanent magnet generator), boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. It obviously increases wind energy utilization and annual power generation. Coreless PMG provides lower start torque/wind speed and longer service life, design service life 10~15 years.
- 【MAIN PARAMETERS】Wind Generator Voltage: 12V, Wind Controller Voltage: 12V / 24V, Rated Power: 400W, Max Power: 450W, Started wind speed: 3 mile/h, Cut-in wind speed: 5.6 mile/h, Rated Wind Speed: 25 mile/h, Max Wind Speed: ≤ 90 mile/h, The instantaneous maximum wind speed: ≤ 101 mile/h, Speed regulation: the wind engle automatically, Over speed protection: Electromagnetic brake, Controller system: Electromagnetism, Generator: Maglev generator, Enerator protection grade: IP67.
- 【GENERATING ELECTRICITY AT LOWER WIND SPEEDS】Wind turbine power generator kit, with compact shape, has the lowest starting wind speed and a larger windward area, generating electricity at lower wind speeds. With dual bearings, the fan movement is more stable, low vibration and low noise. Ideally suitable for boats, gazebos, cabins or mobile homes, green windmills, home, corporate and industrial energy supplies.
- 【HUMANIZED FLANGE DESIGN】Humanized and convenient flange design, easy to install and maintain. All things you need for installation are included. (Package includes: 1 x Wind Power Turbine Generator 1 x Controller 3 x Blade (White & Red & Blue) A bag of screws to connect the main body A bag of screws for connecting the bracket blades.)

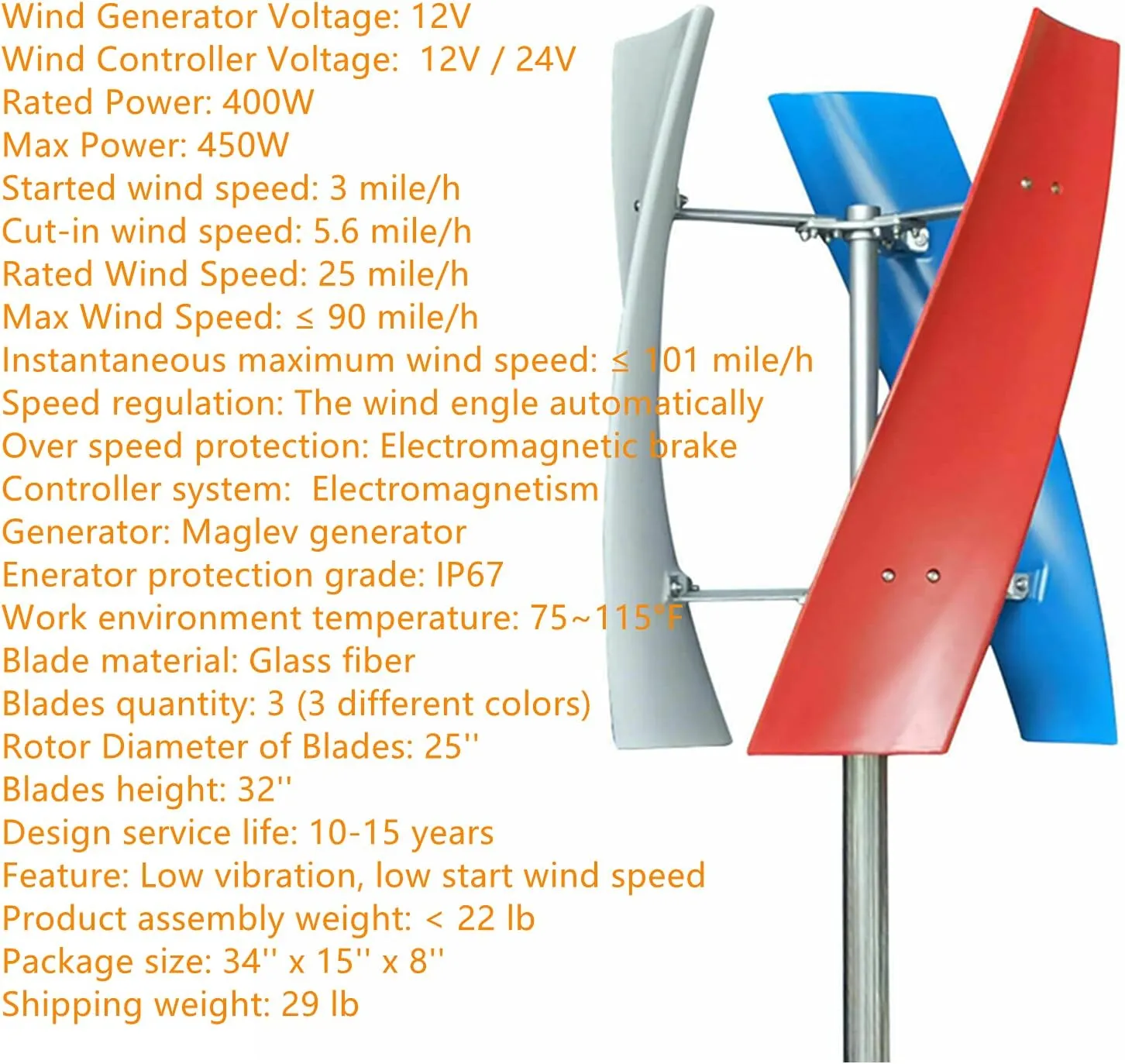

Specifications:
Wind Generator Voltage: 12V
Wind Controller Voltage: 12V / 24V
Rated Power: 400W
Max Power: 450W
Started wind speed: 3 mile/h
Cut-in wind speed: 5.6 mile/h
Rated Wind Speed: 25 mile/h
Max Wind Speed: ≤ 90 mile/h
The instantaneous maximum wind speed: ≤ 101 mile/h
Speed regulation: The wind engle automatically
Over speed protection: Electromagnetic brake
Controller system: Electromagnetism
Generator: Maglev generator
Enerator protection grade: IP67
Work environment temperature: -40~140°F
Blade material: Glass fiber
Blades quantity: 3 (3 different colors)
Rotor Diameter of Blades: 25''
Blades height: 32''
Design service life: 10-15 years
Feature: Low vibration, low start wind speed
Product assembly weight: <22 lb
Package size: 34'' x 15'' x 8''
Shipping weight: 29 lb
Features:
Synthetically injection molded with high-strength FRP material blade.
The spiral blade, designed with aerodynamics to make the rotor run smoothly and quietly.
3-phase AC PMG design, low torque, high-power tracking intelligent microprocessor, effectively regulating the current and voltage.
The lowest starting wind speed and a larger windward area, generating electricity at lower wind speeds.
Package includes:
1 x Wind Power Turbine Generator
1 x Controller
3 x Blade (White & Red & Blue）
A bag of screws to connect the main body
A bag of screws for connecting the bracket blades
Note:
There are two different kinds of screws, please confirm the correct position of the screws before installation.
Installation manual is not included
Professional installation is highly recommended
